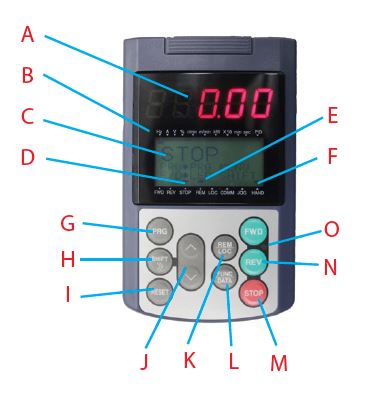

FUJI Mega - Keypad Explanation

A. LED Display

B. LED Monitor Bar

C. RUN/STOP indicator

D. Run direction/stop indicator bar

E. Local/Remote indicator bar

F. Hand / Jog mode indicator bar

G. Use the Program button to access the menu option. When in the menu options, pressing this button will take you to the home screen shown in the image above.

H. The Shift button moves the cursor left/right when changing parameters with numerical values, such as amps or horsepower. The shift button can also be held down while the down or up arrow is pressed to jump by parameter groups.

I. The Reset button can clear codes or return to the previous screen.

J. Use the Up/Down arrow to navigate the menu.

K. The Remote / Local button will allow you to change the function of the keypad as the only source to run the unit or use your terminal strip. You DO NOT use this button to change the option to run in "hand" or "auto." If you have a Hand/Off/Auto switch, that will be done.

L. Function/Data button is used as an enter or save button

M. This is used as an EMERGENCY STOP for the remote function, with which most AID units will operate. AID will program the drive to give an ER6 error code if pressed. If you run the unit in local mode, you will use the stop button as the stop function button.

N. Run direction (local control only)

O. Run indicator LED - this should be green when running.
